ABNIR Kit Support
Andrews is proud to support the defense industry and Lockheed Martin’s F-22 and F-35 programs. As part of our commitment to F-22 and F-35 Maintenance, Repair and Overhaul (MRO) and sustainment, we manufacture, stock or distribute many of the items contained in the Adhesively Bonded Nutplate Installation and Replacement (ABNIR) Kit.
Consumables
Andrews Surface Preparation Tool is an essential component of the ABNIR Kits and we fully support its proper setup and maintenance. We also stock the necessary consumables including quick change back up pads, locating buttons and Norton abrasive discs. Contact us also for regularly scheduled maintenance of the tool.
| ABNIR PART # | DESCRIPTION | ATC PART # | |
|---|---|---|---|
| CB535ATM531 | COMBINATION ALIGNMENT AND SPINDLE LOCK TOOL | ATC00531 | BUY ONLINE NOW |
| CB535ATM484 | BACK UP PAD, QUICK CHANGE, TYPE III, TR, 3/4" DIA. | ATC00484 | BUY ONLINE NOW |
| CB535ATM483 | BACK UP PAD, QUICK CHANGE, TYPE III, TR, 1" DIA. | ATC00483 | BUY ONLINE NOW |
| CB535ATM375 | LOCATING BUTTON, STANDARD, DELRIN, .375 DIA | ATC00254D-375 | BUY ONLINE NOW |
| CB535ATM312 | LOCATING BUTTON, STANDARD, DELRIN, .312 DIA | ATC00254D-312 | BUY ONLINE NOW |
| CB535ATM250 | LOCATING BUTTON, STANDARD, DELRIN, .250 DIA | ATC00254D-250 | BUY ONLINE NOW |
| CB535ATM191 | LOCATING BUTTON, STANDARD, DELRIN, .191 DIA | ATC00254D-191 | BUY ONLINE NOW |
| CB535ATACA1 | TORLON CUTTER ADAPTER, 10-32 THREAD, QUICK CHANGE | ATAC-A-1 | BUY ONLINE NOW |

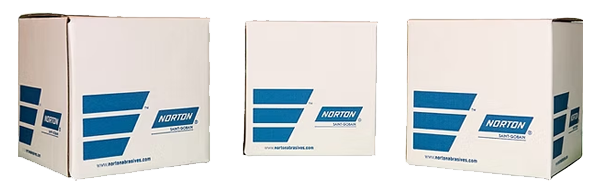

The Norton / Saint-Gobain Nutplate Repair Kit distributed by Andrews contains everything you need to replenish your consumable abrasives in the ABNIR Kit.
| NUTPLATE SIZE | DESCRIPTION | MFR PART ## | |
|---|---|---|---|
| All listed above | NUTPLATE REPAIR KIT - INCLUDES 50 EACH OF THE ABOVE | 69957367347 | BUY ONLINE NOW |
| 3 | ABRASIVE PAD FOR MANDRELS, 3/4" X 0.200" DISC | 66261157379 | BUY ONLINE NOW |
| 4 | ABRASIVE PAD FOR MANDRELS, 1" X 0.26" DISC | 66261157382 | BUY ONLINE NOW |
| 5 | ABRASIVE PAD FOR MANDRELS, 1" X 0.330" DISC | 66261157383 | BUY ONLINE NOW |
| 6 | ABRASIVE PAD FOR MANDRELS, 1" X 0.380" DISC | 66261157384 | BUY ONLINE NOW |
| 3 OS | ABRASIVE PAD FOR MANDRELS, 1" X 0.200" DISC | 69957312311 | BUY ONLINE NOW |
| 6 OS | ABRASIVE PAD FOR MANDRELS, 1.30" X 0.380" DISC | 69957312418 | BUY ONLINE NOW |
| CR3 | ABRASIVE PAD FOR NUT PLATE SURFACE ABRASION TOOL, DIB ZMD 1.30" X .26" | 69957309470 | BUY ONLINE NOW |
| CR4 | ABRASIVE PAD FOR NUT PLATE SURFACE ABRASION TOOL, DIB ZMD 1.3" X 0.35" | 69957309472 | BUY ONLINE NOW |
| CR5 | ABRASIVE PAD, FOR NUTPLATE SURFACE ABRASION TOOL, DIB ZMD 1.3" X 0.50" | 69957309473 | BUY ONLINE NOW |
| CR6 | ABRASIVE PAD FOR NUT PLATE SURFACE ABRASION TOOL, DIB ZMD 1.3" X 0.58" | 69957309474 | BUY ONLINE NOW |
| CR3 | ABRASIVE PAD FOR ANDREWS TOOL SURFACE PREP, 3/4" X 0" QUICK CHANGE DISC | 69957317253 | BUY ONLINE NOW |
| CR3 (OS), CR4, CR5, CR6 | ABRASIVE PAD FOR ANDREWS TOOL SURFACE PREP, 1" X 0" QUICK CHANGE DISC | 69957317252 | BUY ONLINE NOW |
| CR6 (OS) | ABRASIVE PAD FOR ANDREWS TOOL SURFACE PREP, DIB ZMD 1.3" X 0" | 69957344851 | BUY ONLINE NOW |
