Cutters With Inserted Pilot For Rivets and Screws

HSS-PCD

FOR USE WITH	ALUMINIUM	STEEL	TITANIUM	COMPOSITE	KEVLAR
HSS-PCD



                MICROSTOP

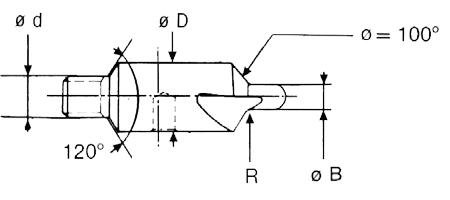

CAGE REF
                CUTTER
Ø D
± 0.1 MM
                PILOT Ø B
                RADIUS
R
MM
                NUMBER
OF
FLUTES
                THREAD
Ø d
                CUTTER REF
HSS-E
                CUTTER REF
CARBIDE


                -0.02 MM
-0.05 MM
                -.0007 IN
-.0020 IN


        RB 156
RB 206
RB 256
RB 257
RB 2582.38	0.0937	0.2-0.4	3	M6 x 1	31206000	-
10	2.50	0.0984	0-0.25	3	M6 x 1	-	02504028PT
10	3.00	0.1 181	0.45-0.65	3	M6 x 1	-	02504029PT
10	3.16	0.1245	0-0.25	3	M6 x 1	-	02504067PT
10	3.17	0.1248	0.2 04	3	M6 x 1	31206005	-
10	3.50	0.1378	0.2 04	3	M6 x 1	31206010	-
10	3.60	0.1417	0.2 04	3	M6 x 1	31206015	-
10	3.97	0.1563	0.2-04	3	M6 x 1	31206020	-
10	4.00	0.1575	0.2 04	3	M6 x 1	31206025	-
10	4.00	0.1575	0.45-065	3	M6 x 1	-	02504030PT
10	4.10	0.1614	0.55 075	3	M6 x 1	-	02504061PT
10	4.15	0.1634	0.2-04	3	M6 x 1	31206030	-
10	4.76	0.1874	0.4-0.75	3	M6 x 1	31206035	-
10	4.80	0.1890	0.4-0.75	3	M6 x 1	31206040	-
10	4.80	0.1890	0.55-0.75	3	M6 x 1	-	02504064PT
10	4.95	0.1949	0.55-0.75	3	M6 x 1	-	02504062PT
10	5.60	0.2205	0.4-0.75	3	M6 x 1	31206045	-
10	6.22	0.2449	0.4-0.75	3	M6 x 1	-	02504069PT
RB 306
RB 30714	4.76	0.1874	0.4-0.75	3	M8 x 1	31206100	-
14	5.00	0.1969	0.4-0.75	3	M8 x 1	31206105	-
14	5.00	0.1969	0.55-0.75	3	M8 x 1	-	02504031PT
14	5.50	0.2165	0.55-0.75	3	M8 x 1	-	02504032PT
14	5.60	0.2205	0.4-0.75	3	M8 x 1	312061 10	-
14	6.00	0.2362	0.4-0.75	3	M8 x 1	31206120	-
14	6.00	0.2362	0.55-0.75	3	M8 x 1	-	02504033PT
14	6.35	0.2500	0.4-0.75	3	M8 x 1	31206125	-
14	6.50	0.2559	0.55-0.75	3	M8 x 1	-	02504034PT
17	8.00	0.3150	0.75-1.25	3	M8 x 1	31206200	-
21	8.00	0.3150	0.8-1.00	3	M8 x 1	-	02504035PT
21	8.50	0.3346	0.8-1.00	3	M8 x 1	-	02504036PT
21	9.52	0.3748	0.75-1.25	3	M8 x 1	31206300	-
21	10.00	0.3937	0.75-1.25	3	M8 x 1	31206305	-
RB 406
RB 356HP5825.4	10.00	0.3937	0.8-1.00	3	M10 x 1	-	02504037PT
25.4	12.00	0.4724	1-1.25	3	M10 x 1	-	02504038PT



ALTERNATIVE CUTTERS CAN BE MADE ON REQUEST WITH:
SPECIAL DIAMETERS
SPECIAL THREAD (EX : 1/4-28F, M10X1,…)
SPECIAL ANGLES (EX : 90°, 120°,...)
CARBIDE, HSS-E OR PCD*
*ONLY TO USE ONLY WITH PILOTS HAVING A HEAD DIA ≥ SHANK DIA + 0.5 MM (.0196").
