Hand Drilling, Countersinking & Spotfacing
RB 156 Microstop Cage
Stroke 3.5mm | 0.14in
Cutter Thread M6 x 1
- Cemented, hardened, and ground chrome-nickel steel spindle mounted on a self-lubricating bronze body and a thrust bearing.
- Centering cone of the cutter (120°) for perfect concentricity.
- Microstop depth adjustment (1 scale division = 0.001 in).
- Microstop depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage.
| MODEL | INPUT STYLE | SHANK | CUTTER THREAD | STROKE | VACUUM | MOUNTING BASE STYLE |
WINDOW SIZE |
NOSE INSERT STYLE |
DIAMETER MAX |
OVERALL LENGTH |
WEIGHT | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IN | MM | MM | MM | MAX MM |
MIN MM |
G | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10000010 | FIXED SHANK | 0.189 | 4.8 | M6 x 1 | 3.5 | NO | TAPPED M19F FOR NOSE | SMALL | NYLON | 25 | 55 | 51 | 75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 100000100 | FIXED SHANK | 0.189 | 4.8 | M6 x 1 | 3.5 | NO | OFFSET MOUNTING BASE | SMALL | NONE | 25 | 55 | 51 | 75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10000010W | FIXED SHANK | 0.189 | 4.8 | M6 x 1 | 3.5 | NO | TAPPED M19F FOR NOSE | LARGE | NYLON | 25 | 55 | 51 | 75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 100000100 W | FIXED SHANK | 0.189 | 4.8 | M6 x 1 | 3.5 | NO | OFFSET MOUNTING BASE | LARGE | NONE | 25 | 55 | 51 | 75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| * High Resolution cages with 0.0001" are available. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

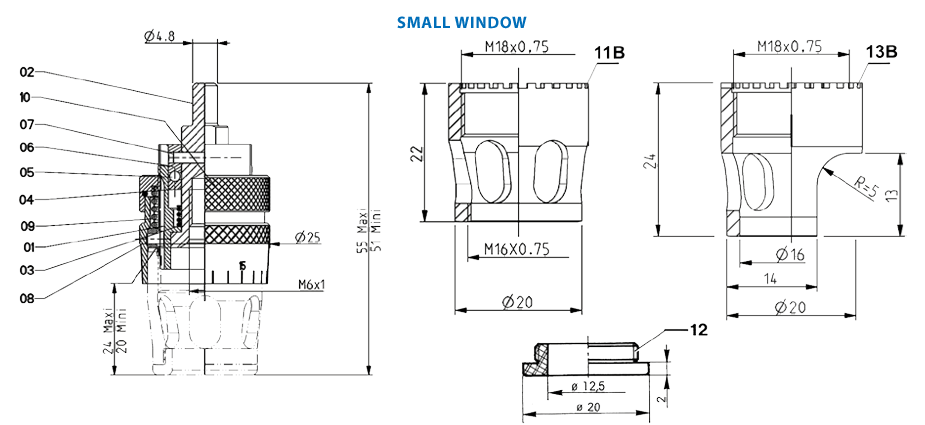

Microstop Cage Parts
| REFERENCE | INDEX | QTY | DESCRIPTION |
|---|---|---|---|
| 90505005 | 1 | 1 | BODY |
| 90025005 | 2 | 1 | SPINDLE |
| 93430040 | 3 | 1 | SPRING |
| 90280005 | 4 | 1 | THRUST BEARING |
| 90245100 | 5 | 18 | BALL 2 MM DIA |
| 93440020 | 6 | 1 | LOCK WASHER |
| 91218110 | 7 | 1 | PIN |
| 94215005 | 8 | 1 | VERNIER ASSEMBLY |
| 93430035 | 9 | 1 | SPRING |
| 90495005 | 10 | 1 | LOCK NUT |
| 90815170 | 11B | 1 | TAPPED MOUNTING BASE |
| 90815170W | 11 | 1 | TAPPED MOUNTING BASE LARGE WINDOW |
| 90825005 | 12 | 1 | NYLON NOSE PIECE |
| 90815175 | 13B | 1 | OFFSET MOUNTING BASE |
| 90815175W | 13 | 1 | OFFSET MOUNTING BASE LARGE WINDOW |
