Right Angle Power Feed Drill Motor

A Series - A1 | A1X | A1XL | A2 | A3 | A4

Air-powered riveting tool with black and red handle, connected hose, and "Andrews Tool Co" logo on the upper part.

Designed to drill holes in very tight spaces, the ATC Right Angle Power Feed Drill Motor provides the force to drill quality holes in hard to reach places. The gap and reach can be customized to fit your application.

Right Angle A1 Image
Right Angle A3 Image

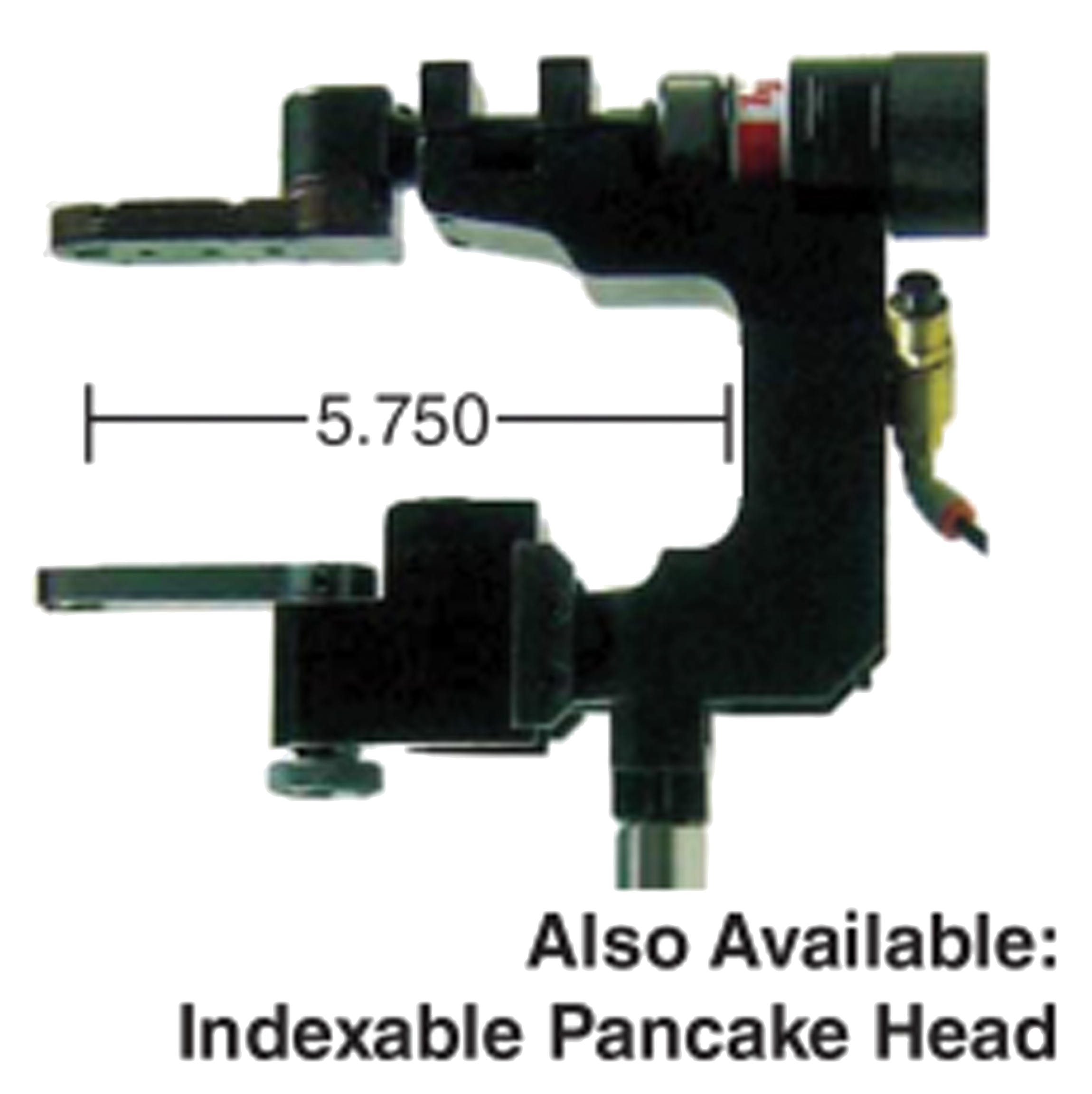

Right Angle Pancake Image

Features

  • ERGONOMIC DESIGN
  • AIR POWER FEED
  • EASY SET-UP
  • SIMPLE OPERATION
  • LOW MAINTENANCE
  • .45, .85 OR 1.5 HP (0.34, 0.63 OR 1.12 kW)
  • 250-6,000 RPM
  • .850 OR 1.5 INCH (21.59 OR 38.1 MM) STROKE
  • 100, 120 OR 140 LB (45, 54, OR 63 KG) FORCE
  • 10-32, 1/4-28 OR 9/32-40 THREADED SPINDLES
  • PUSH BUTTON OR SLIDE FEED SWITCH

Options

  • ADJUSTABLE HYDRAULIC FEED CONTROL
  • HEAVY DUTY 90 DEGREE HEAD
  • EXTENDED SWING FOOT
  • SNAP-IN OR THREADED ANVILS
