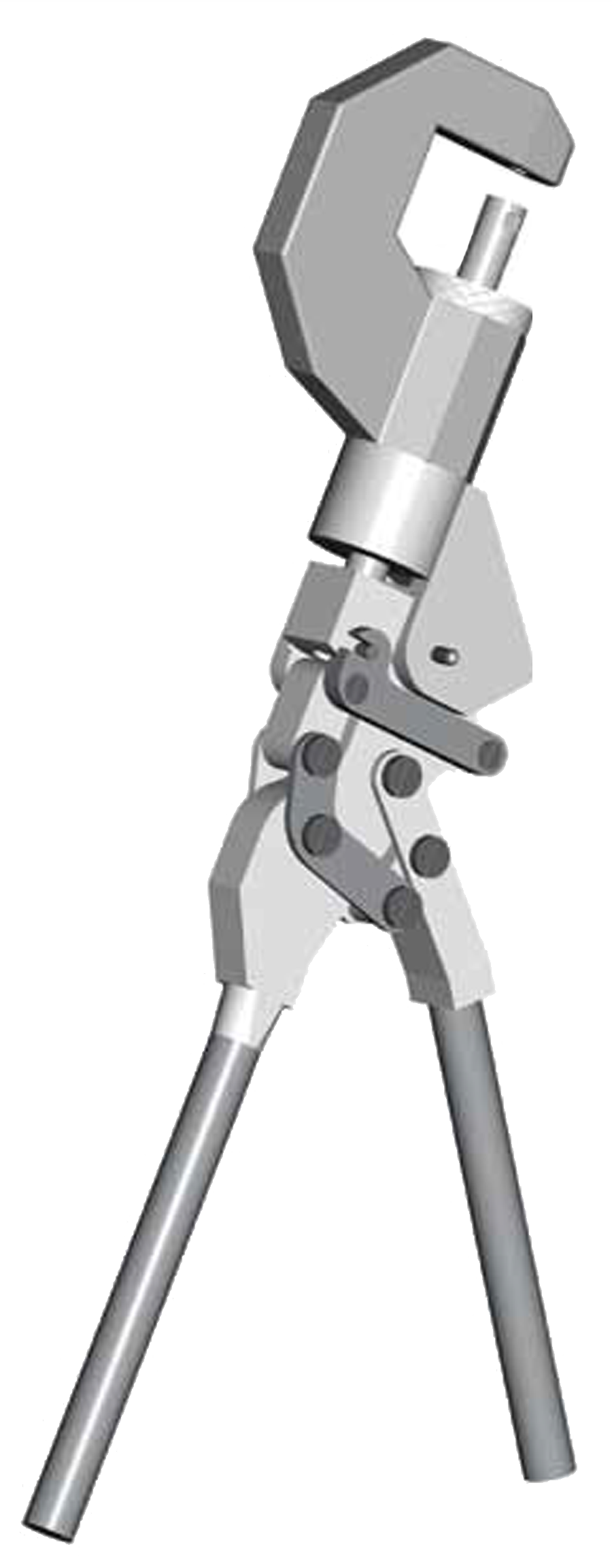

Hand Riveting Pliers

RB 40-13-30 | Reference 60002005

Hand Riveting Pliers RB 40-13-30

Advantages

  • Simple and sturdy, equipped with an interchangeable swivel yoke. These pliers have been designed to squeeze aluminium rivets up to capacity 1/8" dia (Ø 3.2 mm).
  • Compact with a 0.63" (16 mm) opening and a depth of 1.18" (30 mm), the standard yoke is toughened steel. The pliers setting is achieved by simple adjustment of the snap-holder.
  • All special yokes are supplied on request. Simply specify the yoke opening and depth when ordering.
  • On request only, this hand riveting plier can be made with bended handles(60002305).

Technical Data

Riveting Aluminium rivets: Ø 3.2 mm | 1/8" dia - maxi
Depth: 30 mm | 1.18"
To use with rivet squeezer set: Ø 4 mm | 5/32" dia shank
Weight: 1.35 kg | 2.97 lb
Yoke opening: 16 mm | 0.63"
Overall length: 420 mm | 16.53"
This tool is supplied exclusive of the rivet squeezer set
