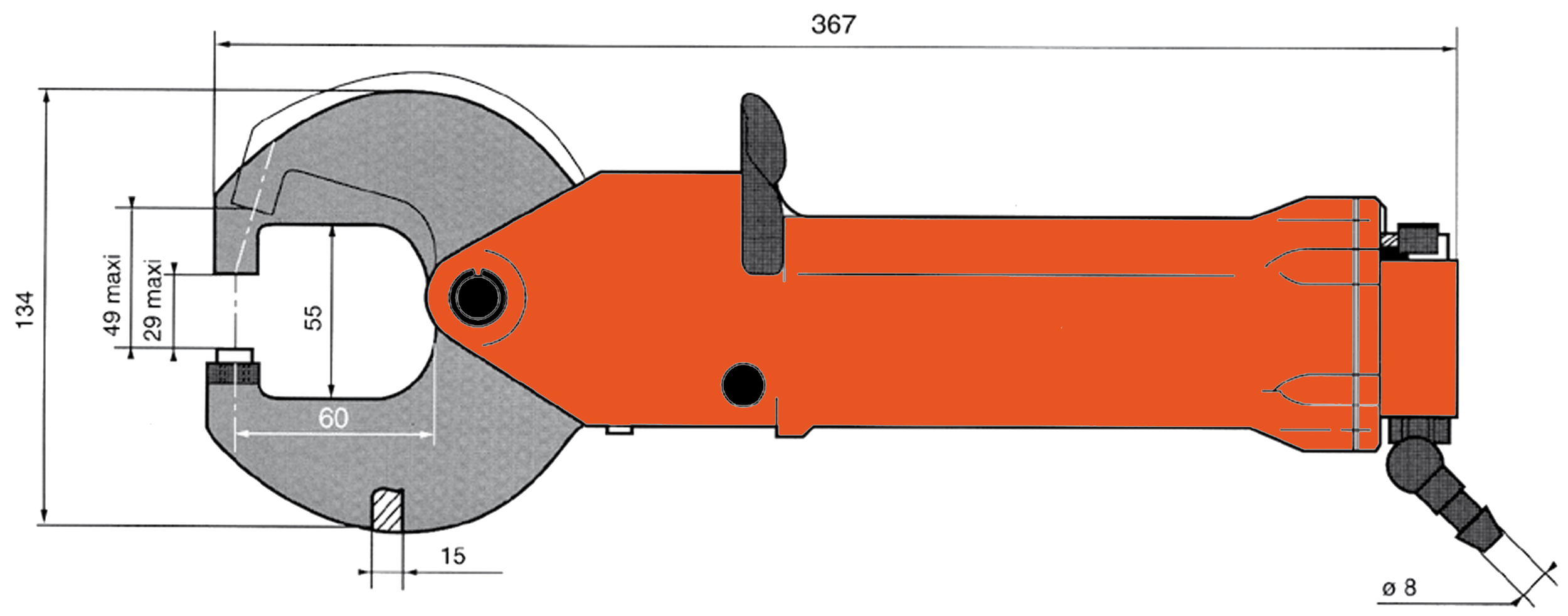

Compression Riveter Alligator Jaw Type
RB 40-60
RIVET SET HOLE SIZE
REFERENCE
STD DIAMETER 5 MM
60101010
STD DIAMETER 3/16"
60101110
Description and Advantages
- Rivet set holder adjustment - stroke 0.2" (5 mm) allows the operator to use this compression riveter with different thicknesses without changing the rivet set.
- This light, sturdy, compact and fast compression riveter, has a maximum rivet capacity of 3/16" (5 mm) dia for aluminium rivets (depending on the rivet joint thickness).
- Equipped with a safety throttle lever.
- Smooth controlled throttle movement for fast and slow approach.
- Alternative air inlet on request (example 1/4 BSP or 1/4 NPT).
Info
- To develop maximum power the riveter must squeeze the rivet near to the end of the riveting stroke. Therefore, the combined length of the two rivet sets must be correct.
- The operator can adjust exactly the position of the rivet by adjusting the snap holder (stroke 5 mm - 0.2"). This allows the operator to use the same rivet set for different thicknesses. Determine the correct length of rivet sets as follows.
-
- A - Component thickness
- B - Height of finished rivet head (flush)
- C - Rivet set height (fixed)
- D - Rivet set height (mobile)
- E - Closed height dimension of the jaws (adjust by moving the snap holder)
