Riveting Cylinder

RB 46

RIVETING CYLINDER
REFERENCE

            RIVETING CYLINDER WITH MANUAL CONTROL ON CYLINDER

            FOR RB 46-01

60202005

            RIVETING CYLINDER WITH CONNECTION BLOCK

            FOR RB 46-03

60202010

Description and Advantages

This cylinder performs an automatic work cycle. A hydraulic pressure controller permits automatic force control, whatever the pressure variation in the hydropneumatic generator power system.
The automatic force control operates along the entire stroke. It enables rivets of the same type, diameter and material to be squeezed on assemblies of varying thicknesses without additional adjustment.
Safety device preventing accidental startup with the manual control cylinder version.

Technical diagram of mechanical components with measurements, labeled RB 46-01 and RB 46-03, indicating parts for force adjustment and return stroke adjusting nut.

Technical Data

            Max. riveting dia. (depending on the rivet joint thickness):

Light Alloy: Ø 8 mm | 5/16"
Max. Force: 7 t
Monel Metal: Ø 6.35 mm | 1/4"
Max. Cylinder Stroke: 50 mm | 2.00"
Titanium: Ø 5.6 mm | 7/32"
Weight Without Yoke:: 2 kg | 4.41 lb
Min. Force: 0.4 t
Cycle Time: 2.5 s*
*To set a light alloy rivet with a diameter of 4.8 mm with a noload stroke of 10 mm and a 1.80 meter hydraulic hose.

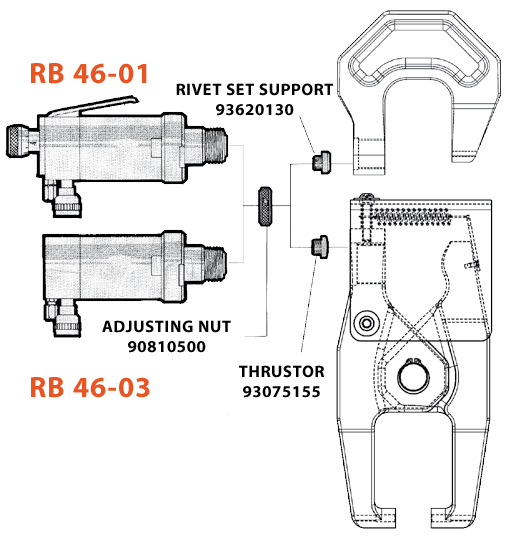

Technical diagram of a rivet set support for parts RB 46-01 and RB 46-03, including a throttle component, adjusting nut, rivet set support, and detailed assembly instructions with part numbers.

Special c-yokes/alligator jaws on request.
