Surface Preparation Tool

Prep Tool

Surface preparation for Bonded Nut Plates has never been easier or faster. Save time and effort with the Andrews Surface Preparation Tool. Locating buttons align with the pilot hole on the front side of the material. With the pull of the trigger, a sanding disc is powered to the backside, quickly and accurately abrading coatings only where needed.

Surface Preparation Tool Image

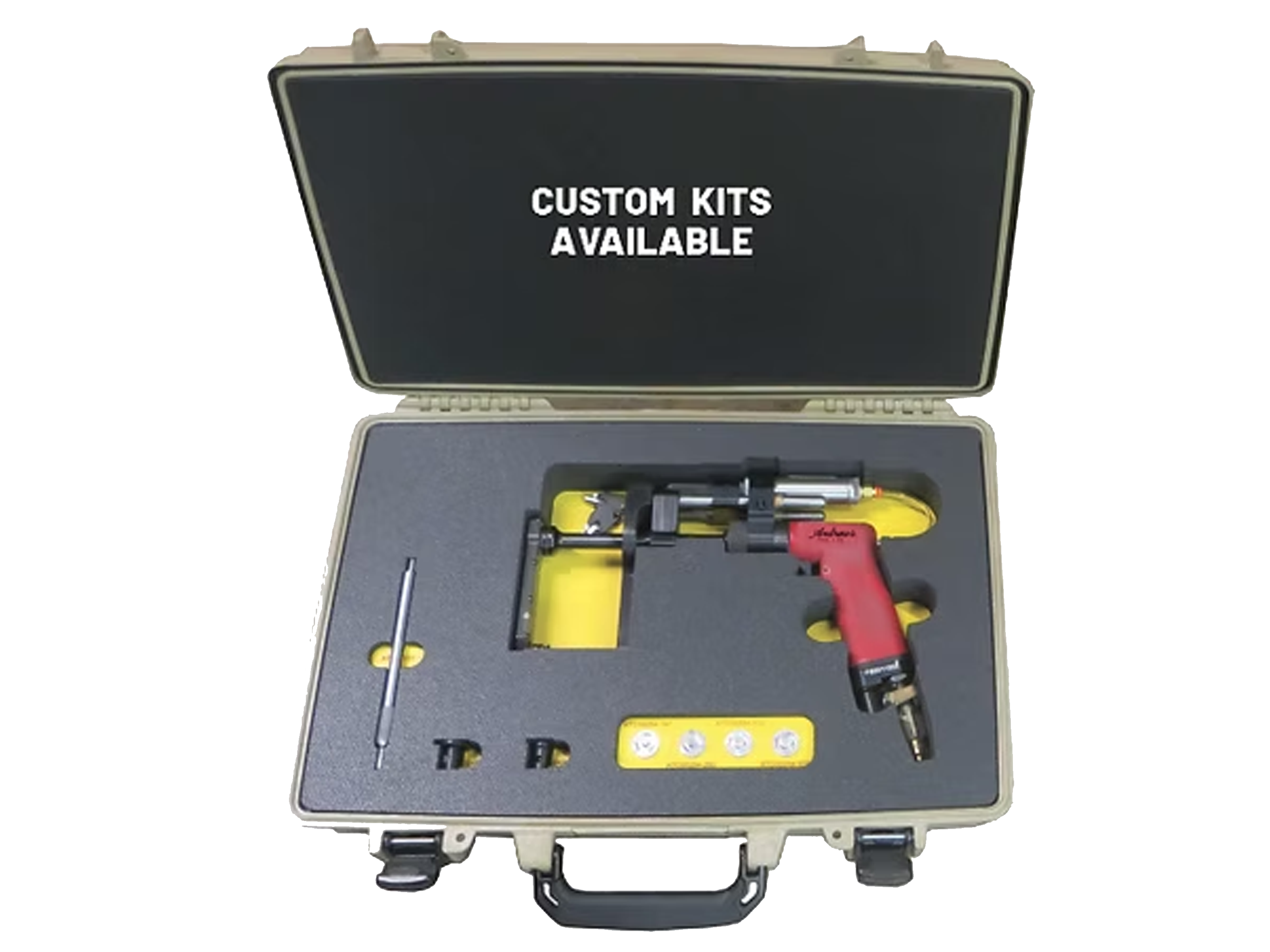

Custom Kitting Image
Surface Preparation Tool Accessories Image

Features

  • ERGONOMIC DESIGN
  • AIR POWER FEED
  • EASY SET-UP
  • SIMPLE OPERATION
  • ADJUSTABLE TO MATERIAL THICKNESS
  • INDEXABLE HANDLE
  • 500, 1,000, 2,400, 3,300 OR 4,500 RPM
  • .45 HP (0.34 kW)
  • 1 INCH (25.4 MM) STROKE
  • 20 LBS (9 KG) APPLIED FORCE ON STRUCTURE THROUGH ABRASIVE DISC
  • 1/4-28 SPINDLE GEAR
  • ADJUSTABLE FLOW CONTROL FOR FEED RATE ADJUSTMENT

Options

  • THREADED SPINDLE ADAPTERS
  • QUICK CHANGE BACK-UP PADS
  • NO-MAR DELRIN LOCATING BUTTONS
  • COMBINATION SPINDLE LOCK AND ALIGNMENT TOOL
  • FULLY ADJUSTABLE CYCLE TIMER
  • CUSTOM KITS WITH ACCESSORIES
